Hubbell Hubbell HBL5269CM2

Hubbell HBL5269CM2

Kirby Risk #: 2336963

UPC: 78358584852, 783585848525, 00783585848525

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Modified Industry Description

CONN, 15A 125V, 5-15R, BK

AD Description

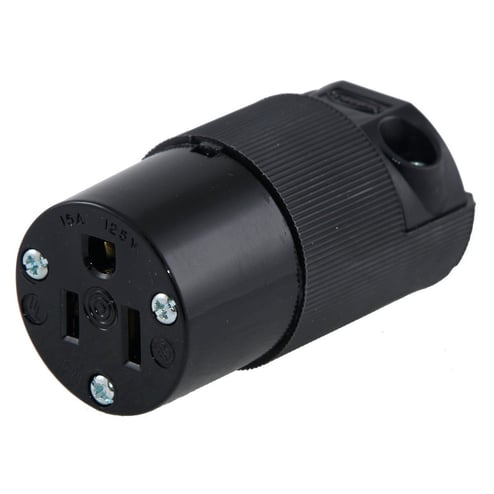

Wiring Device-Kellems HBL5269CM2 Heavy Duty Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Amperage Rating	15
Application	Heavy Duty Industrial
Color	Black
Connection	Screw Terminals
Country of Origin	US
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Insulation	Insulated Body
Length1	4.1000
Material	Composite
Mounting	Cord Mounted
NEMA_Rating	5-15R
Number Of Conductors	3-Wire Grounding
Number_Of_Poles	2
Series	Insulgrip
Size	Standard
Special Features	14 to 12 AWG conductor range 75 deg C minimum continuous, -40 deg C without impact, -25 deg C with impact maximum continuous temperature Female connector body Indoor dry unless protected by additional means environmental conditions Insulated valise body, cord mounted
Standard	UL498, CSA
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	-40 to 75/-25 to 75
Type	Insulgrip
Voltage Rating	125
