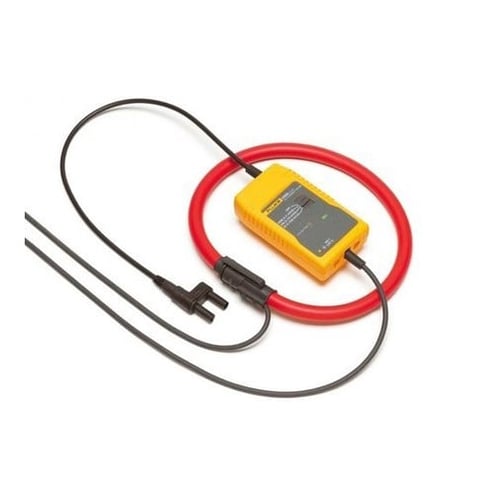

Fluke FLUKE I2000FLEX


Description

Industry Description

AC Current Clamp, Model: i2000, Amperage Rating: 20/200/2000 AMP, Voltage Rating: 600 VRMS/VDC, Measuring Range: 20/200/2000 AMP AC RMS At Current, 10 HZ - 20 KHZ (-3 DB) At Frequency, Operating Temperature: 0 - 70 DEG C (Head And Electronics), Dimensions: 4.56 IN Height X 2.69 IN Width X 1.18 IN Depth, Impedance: 100 KOHM Minimum, Battery: (2) AA/MN 1500/LR6 Alkaline, Accuracy: 25 DEG C, Plus/Minus 1 PCT Of Range 45 - 65 HZ, Diameter: 178 MM Maximum Conductor 14.3 MM Head Cable, Storage Temperature: -40 To 105 DEG C (Head), -20 To 85 DEG C (Electronics), EN 61010-031: 2002, EN 61010-2-032: 2002, EN 61010-1: 2001, 600 VRMS, Category III, EN 61326: 1998 And A1, A2 And A3, For Use With Multimeters, Recorders Or Data Loggers

Modified Industry Description

2000 FLEX CURRENT CLAMP

Specifications

Amperage Rating
20/200/2k
Application
For Use With Multimeters, Recorders Or Data Loggers
Brand Name
FLUKE
Color
Black
Country of Origin
UKN
Dimensions
4.56 in H x 2.69 in W x 1.18 in D
DimensionsInches
4.56 IN Height X 2.69 IN Width X 1.18 IN Depth
Frequency_Rating
10 Hz to 20 kHz
Measuring_Range
20/200/2000 AMP AC RMS At Current, 10 HZ - 20 KHZ (-3 DB) At Frequency
Model
i2000
Operating_Temperature
0 to 70
Package_Quantity
1
Power_Source
(2) AA/MN 1500/LR6 Alkaline
Safety_Rating
CAT III 600 V
Special Features

  • -40 to 105 deg (head), -20 to 85 deg C (electronics) storage temperature
  • 0 to 70 deg C operating
  • 15 to 85% humidity, 25 deg C, +/- 1% of range 45 to 65 Hz accuracy, 100 kOhm impedance, (2) AA/MN 1500/LR6 alkaline battery
  • 178 mm maximum conductor dia
  • 2 m cable length
  • 24 in head circumference, 0.56 in head cable diameter, 1.5 in head bend radius
  • It can be used to measure currents up to 2000 A
  • Linearity - 10% to 100% of range, +/- 0.2% of reading
  • Noise - 8 mV AC rms (30 A), 2 mV AC rms (300 A, 3000 A)
  • Output sensitivity (AC-coupled) - 1 mV, 10 mV, 100 mV, 1 mV per A
  • Phase error - < +/-1 deg (45 Hz to 65 Hz), +/-10 deg (at 20 kHz)
  • Suitable for use with multimeters, recorders and data loggers
Standard
EN 61010-031: 2002, EN 61010-2-032: 2002, EN 61010-1: 2001, 600 VRMS, Category III, EN 61326: 1998 And A1, A2 And A3
Sub_Brand
Fluke
Type
AC Current Clamp
Voltage Rating
848.528//600
