Appleton Appleton EYDEF400


Description

Industry Description

UNILETS EY Series 40 PCT Expanded Fill Vertical Drain Sealing Fitting, Size: 4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Threaded, Turning Radius: 4.22 IN, Length: 11.06 IN, Width: 6-1/2 IN, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, For Use With Threaded Rigid Metal Conduit and IMC

Modified Industry Description

4 DRAIN SEAL-OFFS-40 FILL

AD Description

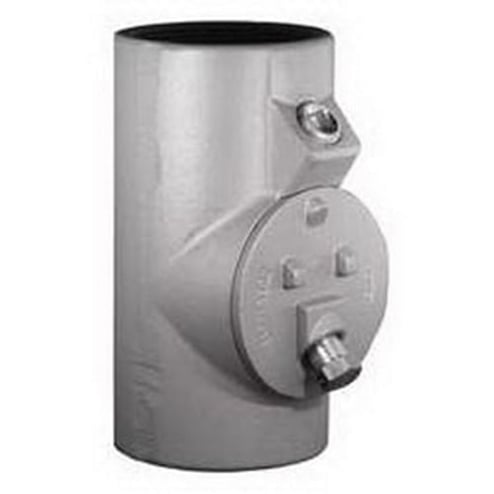

Appleton® UNILETS® EYDEF400 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Connection
Female Threaded
Country of Origin
MX
Dimensions
11.06 in L x 6.5 in W
Finish
Triple Coated
Length1
12.0000
Material
Malleable Iron
Series
EY Series
Size
4
Special Features

  • 40% fill expanded fill sealing fittings for close turning radius
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Chromate/epoxy powder coated/zinc electroplated finish
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Restrict any explosion to the sealed off enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
Sub_Brand
Appleton
Type
Dust-Ignitionproof Explosionproof Raintight
