Hubbell Hubbell RRD15EWTR
Hubbell RRD15EWTR
Kirby Risk #: 2330834
UPC: 88377830147, 883778301476, 00883778301476
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

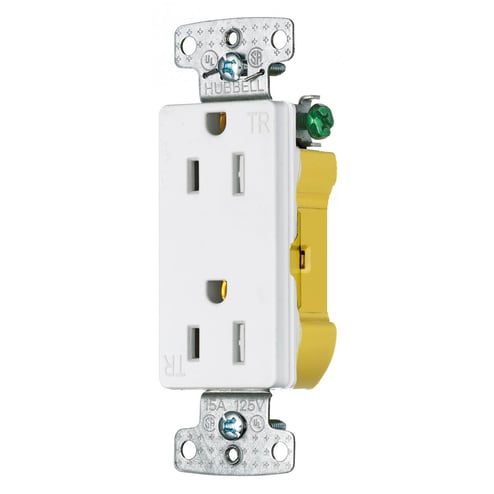

Hubbell Wiring Device Kellems, TradeSelect, Straight Blade Devices,Residential Grade, Receptacles, Tamper Resistant, Decorator Duplex, 15A125V, 2-Pole 3-Wire Grounding, 5-15R, White, Push Terminals
Modified Industry Description
RCPT, DUP, DEC, TR, 15A 125V,
AD Description
Bryant Electric tradeSELECT® RRD15EWTR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Residential Receptacles
|
| Color |
White
|
| Connection |
Eight Push Wire Holes
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
4.2000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-15R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Decorator Duplex
|
| Voltage Rating |
125
|
| Wattage |
1875
|
