Hubbell Hubbell HBL4P320DA
Hubbell HBL4P320DA
Kirby Risk #: 2330473
UPC: 78358540750, 783585407500, 00783585407500
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

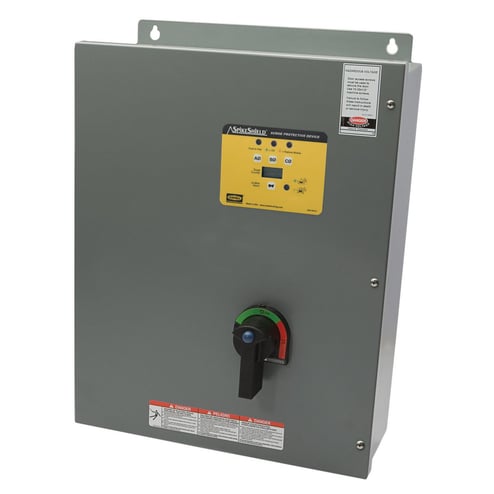

Hubbell Wiring Device Kellems, SPIKESHIELD Service Entrance SurgeProtection Panel, with Disconnect, 320KA, 3PH 120/208V, with Disconnect
AD Description
Wiring Device-Kellems SpikeShield® HBL4P320DA Branch Service Surge Protective Panel With Disconnect, 120/208Y VAC, 60 Hz, 3 Phase, 10 to 2 AWG Wire
Vendor Description
The SpikeShield® service entrance product line includes a line of panels with replaceable modules. This series features improved performance through the use of a low impedance busbar design and easily replaceable bolt down modules. They incorporate a modular (replaceable surge protection modules) design and feature the latest industry approvals and safety ratings.
Specifications
| Application |
Complete Panel with Disconnect
|
|---|---|
| Class |
C
|
| Connection |
Wire Lugs
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor and Outdoor
|
| Frequency_Rating |
60
|
| Material |
Steel
|
| Mounting |
Mounting Screws
|
| Operating_Temperature |
-40 Degrees F to 149 Degrees F (-40 C to 65 C)
|
| Phase |
3
|
| Size |
320kA Peak
|
| Special Features |
|
| Standard |
cULus UL1449-3Rd Edition Type 2 Spd
|
| Sub_Brand |
SpikeShield
|
| Type |
Service and Branch Panel Protection
|
| Voltage Rating |
120/208V AC WYE kV
|
