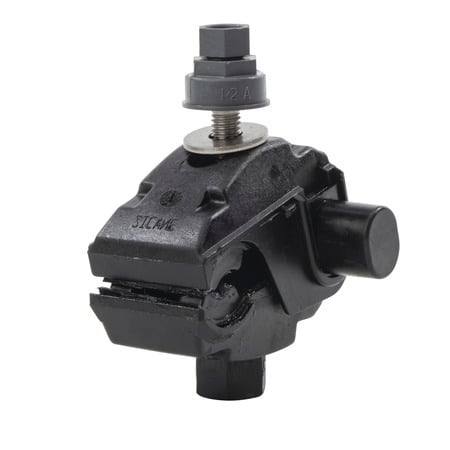

NSI NSi IPCS7501
NSI IPCS7501
Kirby Risk #: 2324512
UPC: 66238108261, 662381082619, 00662381082619
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Modified Industry Description
Insulation Piercing Connector 750-10 AWG 750-3/0 Main 10-14 AWG Tap, Dual Rated, Torque Limiting Nut
AD Description
NSI EASY-TAP IPCS7501 Dual Rated Piercing Insulation Connector, 3/0 AWG to 750 kcmil Aluminum/Copper Conductor, Fiber Reinforced Thermal Plastic
Specifications
| Amperage Rating |
40-55
|
|---|---|
| Application |
Splice, Tap Power Connectors
|
| Color |
Black
|
| Conductor Type |
Aluminum/Copper
|
| Conductor Size |
3/0 AWG to 750 kcmil
|
| Country of Origin |
FRA
|
| Dimensions |
2.6 in L x 2.4 in W x 3.7 in H
|
| Environmental_Conditions |
90 C
|
| Finish |
Thermal Plastic
|
| Length1 |
2.6000
|
| Material |
Fiber Reinforced Thermal Plastic
|
| Mounting |
Clamp
|
| Mounting_Type |
Clamp
|
| Series |
IPCS
|
| Size |
L=2.60 - W=2.40 - H=3.70
|
| Special Features |
|
| Standard |
UL486B Listed
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Dual Rated
|
| Voltage Rating |
600
|
