NSI NSi L156B
NSI L156B
Kirby Risk #: 2324062
UPC: 66238133702, 662381337023, 00662381337023
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

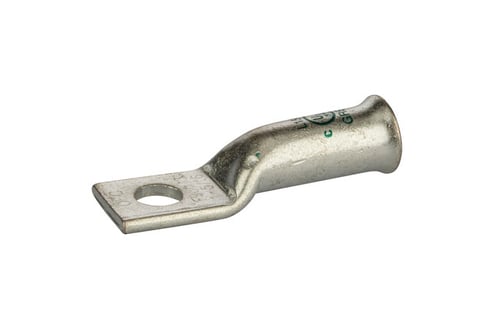

1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 1 AWG - 5/16" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Modified Industry Description
1 AWG CU COMPRESSION LUG, 5/16IN
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Green
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
2.1100
|
| Material |
Copper
|
| Mounting |
5/16 Mounting Hole
|
| Size |
L=2.11 - W=.673 - OD=.469 - ID=.358
|
| Special Features |
# 1 AWG (STR) - 5/16 Mounting Hole
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole - Belled End
|
| Voltage Rating |
600
|
