Burndy Burndy YPC2A8U


Description

Industry Description

Compact compression connector designed to tap small lighting wires from secondaries. Figure 6-shape separates run and tap, and minimizes galvanic corrosion.

AD Description

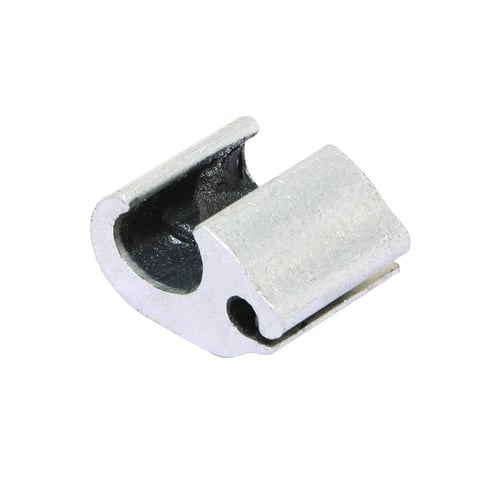

BURNDY® CRIMPIT™ YPC2A8U Type YPC-A-U Compact Overhead Compression Connector, Figure 6, 6 to 4 AWG Main/Run, 14 to 8 AWG Tap, Copper

Specifications

Application
For Combinations Of Copper, Aluminum, ACSR, Compressed And Compact Conductors
Country of Origin
MX
Length1
0.6900
Special Features

  • 14 to 8 AWG copper tap range, 8 AWG aluminum tap size (range)
  • 6 to 2 AWG aluminum run size (range), 6 (6/1) turkey AWG to 4 (7/1) swanate AWG ACSR run size (range), 6 to 2 AWG copper stranded run (range)
  • Connector can be gripped in tool and slipped over line for easier installation
  • Designed to tap small lighting wires from secondaries
  • Figure 6 shape separates run and tap and minimizes galvanic corrosion
  • For MD6, MD7 tool, W-BG die, BG die, Y35, Y750 tool, U-BG die, Y45 tool, U-BG die with PT-6515 adapter, Y46 tool, U-BG die with puadp-1 adapter, OUR840 tool and XBG die
  • Pre-filled with PENETROX® joint compound and strip sealed
Standard
TAA Compliant (All status valid till December 2024)
Sub_Brand
CRIMPIT
Type
YPC-A-U
