NSI NSi L10058
NSI L10058
Kirby Risk #: 2313441
UPC: 66238103420, 662381034205, 00662381034205
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

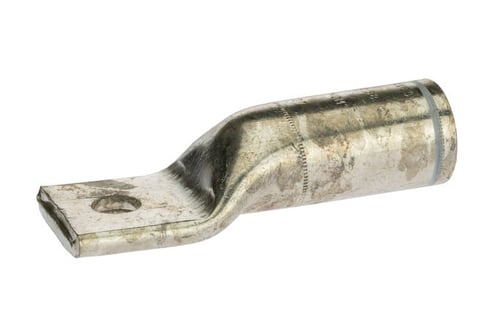

1 Hole Long Barrel Copper Compression Lug 1000 MCM - 5/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Modified Industry Description
1000 MCM CU COMPRESSION LUG, 5/8
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
1000 MCM (STR)
|
| Color |
White
|
| Conductor Material |
Copper
|
| Conductor Size |
1000
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
5/8 Mounting Hole
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Size |
L=5.62 - W=2.15 - OD=1.50 - ID=1.15
|
| Special Features |
1000 MCM (STR) - 5/8 Mounting Hole
|
| Standard |
UL486
|
| Stud_Size |
5/8
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole
|
| Voltage Rating |
600 V
|
