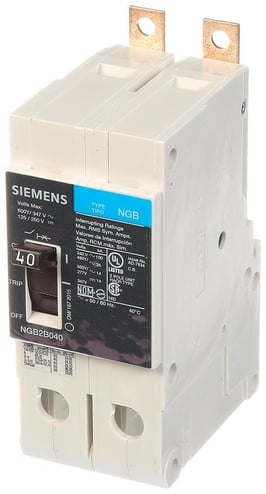

Siemens Siemens NGB2B040B
Siemens NGB2B040B
Kirby Risk #: 2311606
UPC: 78364341415, 783643414150, 00783643414150
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 40A 2-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 2 x 5.4 x 2.8.
Modified Industry Description
BREAKER NGB 2P 40A 600V 14KA LD LUG
AD Description
Siemens NGB2B040B Type NGB Low Voltage Molded Case Circuit Breaker, 600Y/347 VAC, 40 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
40
|
|---|---|
| Brand Name |
Siemens
|
| Country of Origin |
MX
|
| Frame |
NGB
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
14
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Sub_Brand |
Siemens
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600/347
|
| Width_2 |
7.0000
|
| Width_3 |
40.0000
|
| Width_4 |
40.0000
|
