O-Z/Gedney O-Z/Gedney ACV50T
O-Z/Gedney ACV50T
Kirby Risk #: 2311227
UPC: 78312602040, 783126020403, 00783126020403
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

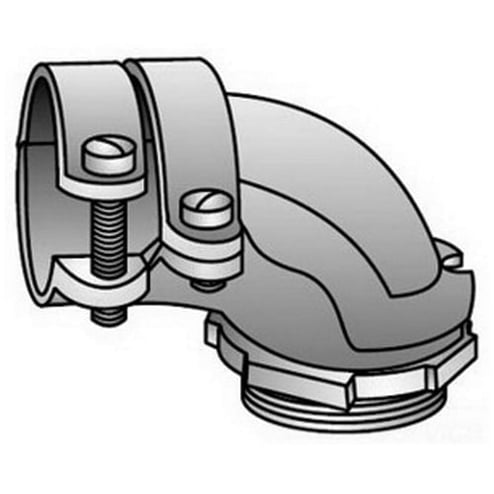

OZ-Gedney Type ACV 90 DEG Center Stopped 2-Screw Clamp Connector, Size: 1/2 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 25/32 - 61/64 IN, Malleable Iron, Finish: Zinc Electroplated, Insulated Throat, 7/16 IN Thread Length, Dimension A: 1-3/4 IN, Dimension B: 1-1/16 IN, Third Party Certification: UL File Number E-11852 (Armored Cable And Flexible Metal Conduit), Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means), CSA 9795 And 11584 (Armored cable and Flexible Metal Conduit), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
Modified Industry Description
1/2 IN 90 DEG CONN AC/FMC INSU
Specifications
| Application |
For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
|
|---|---|
| Connection |
Male NPS Hub X Screw Clamp
|
| Country of Origin |
MX
|
| Finish |
Zinc Plated
|
| Insulation |
Insulated Throat
|
| Length1 |
6.8000
|
| Material |
Malleable
|
| Size |
1/2
|
| Special Features |
To ground and secure armored cable and flexible metal conduit to boxes and enclosures; Furnished with locknuts
|
| Standard |
Third Party Certification: UL File Number E-11852 (Armored Cable And Flexible Metal Conduit), Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means), CSA 9795 And 11584 (Armored cable and Flexible Metal Conduit), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1
|
| Type |
ACV 90 DEG Center Stopped 2-Screw Clamp Connector
|
