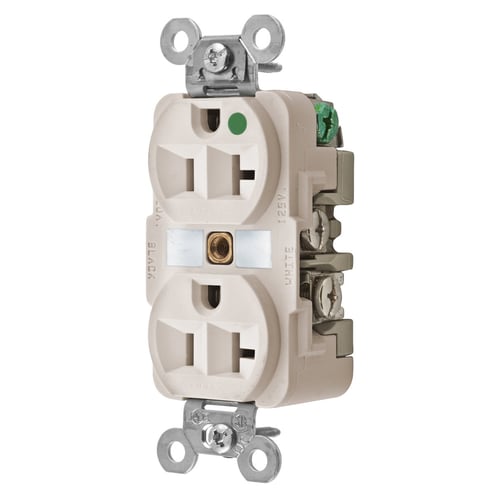

Hubbell Hubbell HBL8300LA


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, LightAlmond, Single Pack

Modified Industry Description

20A 125V RECPT LIGHT ALMOND HOSPITAL

AD Description

Wiring Device-Kellems HBL® HBL8300LA 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Hospital Grade
Color
Light Almond
Connection
Back and Side Wired Screw Terminals
Conductor Size
#14 AWG to #12 AWG
Country of Origin
US
Dimensions
3.28 in H x 1.65 in W x 1.19 in D
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Horsepower
1
Length1
4.1600
Material
Composite/Thermoplastic
Mounting
Screw Mount
NEMA_Rating
NEMA 5-20R
Number_Of_Poles
2
Phase
1
Series
Hospital Grade
Size
Standard Sized Product
Special Features

  • 1-piece nickel plated brass integral ground strap for greater corrosion resistance
  • All hospital grade devices are marked with the green dot symbol, required by UL
  • Back wired ground terminal allows faster, easier installation
  • Barbed assembly arms reduce possibility of face/base separation
  • Deep body design increases impact and chemical resistance
  • Exclusive bypass contacts are made of nickel plated brass alloy, increasing blade retention, insuring reliable uninterrupted flow of power
  • External wiring clamps allow for visual inspection of the terminal
  • ID marking surface provides quick, sure circuit identification
  • Patented ground contact provides redundant grounding
  • Providing contact stability, this high performance material will reduce heat buildup giving you long lasting performance
  • Reinforced thermoplastic base provides superior thermal, electrical and mechanical properties
  • Screw mounting
  • Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
  • Unique strand containment feature on the terminal ''bundles'' the wire, ensuring 100 percent clamping of wire strands and reducing heat from the termination
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional
Voltage Rating
125
Wattage
2,500
