Siemens Siemens MC0816B1200CT


Description

Industry Description

SIEMENS LOW VOLTAGE METER LOAD CENTER COMBINATION. FACTORY INSTALLED MAIN BREAKER 8 (1 INCH) SPACES INTERIOR ALLOWING MAX 16 CIRCUITS. 4-JAW METER / 1-PHASE SYSTEM RATED 200A. SPECIAL FEATURES OH/UG FEED, RING TYPE COVER, FEED THRU LUGS

Modified Industry Description

METER COMBO L/C 200A 8CKT W/SUBFEED

AD Description

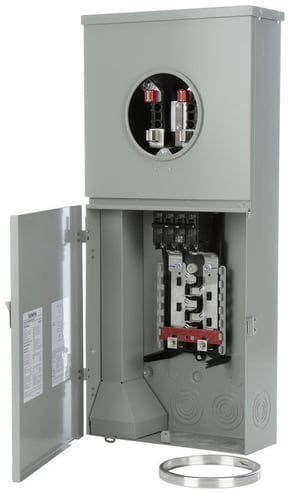

Siemens MC0816B1200CT Meter Load Center Combination, 120/240 VAC, 200 A, 1 Phase

Specifications

Amperage Rating
200
Application
SERVICEENTRANCEEQUIPMENT
Country of Origin
US
Dimensions
32 in H x 14 in W x 5 in D
Enclosure
Ring
Frequency_Rating
TRUE
Insulation
None
Length1
15.0000
Mounting
Surface
Mounting_Type
Surface
Operating_Temperature
N/A
Phase
1
Size
1
Special Features

  • 08 (1 in) spaces
  • 16-circuit
  • 22000-AIC rated
  • 3-wire circuit configuration
  • Captive dead front screw
  • Deadfront pull ring
  • Key hole shaped mounting holes for easy hanging
  • Load wires bottom or back exit only
  • Overhead and underground feed applications
  • Pad locking provisions on all devices
  • Side hinge door removable by backing out only one screw
  • Suitable for use only as service entrance equipment
  • Tin plated aluminum extrusions 6061-T6 terminal strip
Standard
UL
Sub_Brand
Modular Metering
Type
METERLOADCENTER-MAINDISCONNECTCOMBINATION
Voltage Rating
120/240
