Hubbell Hubbell GFR5262SG


Description

Industry Description

Hubbell Wiring Device Kellems, Power Protection Products, Receptacles,GFCI, Tamper and Weather Resistant, Industrial Grade, Self Test, 15A125V, 2-Pole 3-Wire Grounding, 5-15R, Brown

Modified Industry Description

15A/125V INDL. TAMPER ST GFCI,

AD Description

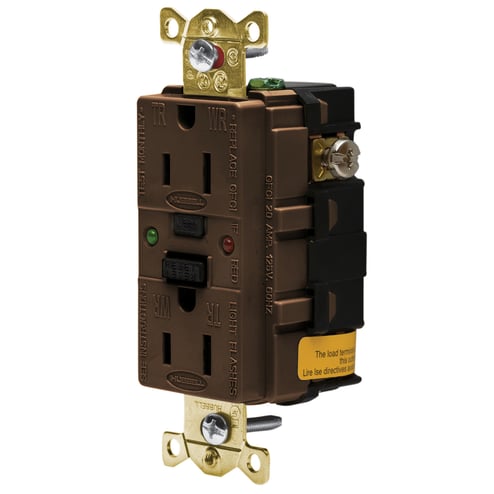

Wiring Device-Kellems AUTOGUARD® Style Line GFR5262SG Decorator Duplex Heavy Duty Standard Self-Test Tamper/Weather-Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Vendor Description

Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Specifications

Amperage Rating
15
Application
Extra Heavy Duty Industrial Grade
Brand Name
Hubbell
Color
Brown
Connection
Back and Side Wired Screw Terminals
Conductor Size
#14 AWG to #12 AWG
Country of Origin
KR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Thermoplastic
Mounting
Screw Mount
NEMA_Rating
5-15R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • 10 kA short circuit current rating
  • Ground fault indicator
  • Limits improper access to energized contacts
  • No power at face if reverse wired
  • Power indication
Standard
Fed.Spec;Meets All NEC® Requirements
Sub_Brand
Straight Blade GFCI Receptacles
Type
Tamper-Resistant, Weather Resistant
Voltage Rating
125
Wattage
1875
