NSI NSi GL40N
NSI GL40N
Kirby Risk #: 2292390
UPC: 66238103652, 662381036520, 00662381036520
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

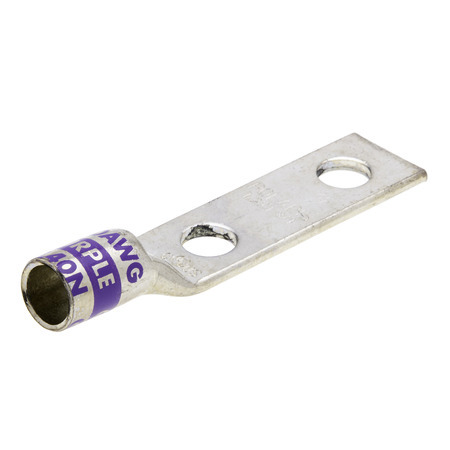

2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4/0 AWG - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
4/0 AWG CU COMPRESSION LUG, 1/2
AD Description
NSI GL40N GL-N Series 2-Hole Compression Lug With Peep Hole, 4/0 AWG Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Purple
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
4.2910
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Holes
|
| Size |
L=4.29 - W=1.00 - OD=.690 - ID=.550
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Short Barrel - Two Hole
|
| Voltage Rating |
600
|
