NSI NSi 2-2/0T
NSI 2-2/0T
Kirby Risk #: 2290713
UPC: 66238100121, 662381001214, 662381978202, 00662381001214
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

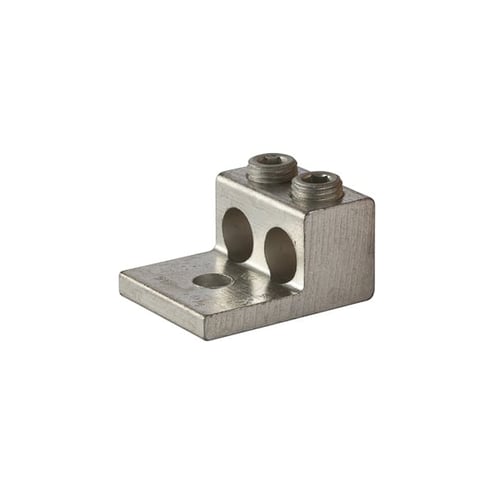

2 Port Aluminum Lug 2/0 - 14 AWG Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.
Modified Industry Description
ALUMINUM DOUBLE LUG (2) 2/0-14 AWG
AD Description
NSI 2-2/0T Dual Rated Lug, 14 to 2/0 AWG, 1/4 in Stud, 1 Bolt Holes, Aluminum
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
1/4
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
2/0-14 AWG
|
| Country of Origin |
USA
|
| Finish |
Aluminum
|
| Material |
Aluminum
|
| Number_of_Conductors_Ports_Main_Primary |
2
|
| Number_Of_Mounting_Holes |
1
|
| Number_Of_Ports |
2
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Aluminum Double Lug
|
| Voltage Rating |
600
|
