O-Z/Gedney O-Z/Gedney ABB150


Description

Industry Description

OZ-Gedney Type ABB Insulating Bushing, Size: 1-1/2 IN, Phenolic, Black, Connection: Threaded, 150 DEG C, 2-3/8 IN Outside Diameter, 1-1/2 IN Hole, 1/2 IN Thread Length, Maximum Enclosure Thickness: 1/4 IN, 3/4 IN Shoulder Height, 3/8 IN Shoulder H

Modified Industry Description

1-1/2 IN COMBO A&BB BSHG

Specifications

Application
For Threaded Rigid Conduit And IMC
Color
Black
Connection
Threaded
Country of Origin
US
Dimensions
2-3/8 in OD
Length1
8.3000
Material
Phenolic
Size
1-1/2
Special Features

  • High impact black thermosetting phenolic bushings, with at 150 deg C UL temperature rating, that will not soften, melt or burn
  • O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust
  • O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC

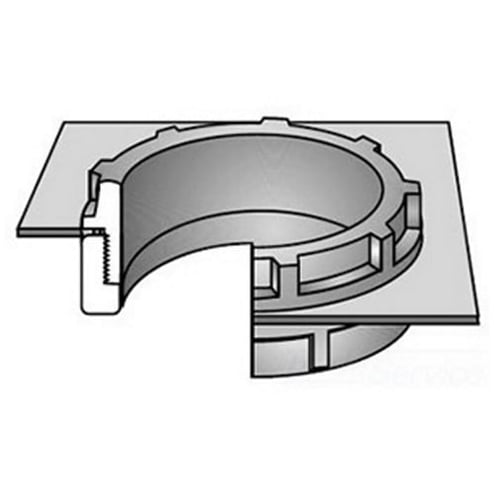

  • Type ABB is a combination of type A and BB bushings for insulating cables passing through metal boxes or troughs
Standard
Third Party Certification: UL File Number E-20933, CSA 011584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1
Temperature_Rating
302
Type
Type ABB
