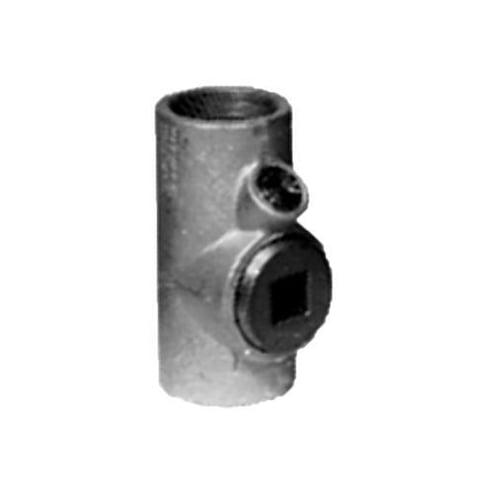

O-Z/Gedney O-Z/Gedney EYA-200A


Description

Industry Description

Explosionproof Conduit Sealing Fitting, Turning Radius 2-9/32 Inch, Trade Size 2 Inch, Connection Type Female, Female, Material Copper-Free Aluminum, Mounting Position Horizontal/Vertical, Enclosure Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, Approval UL 886, CSA C22.2, Overall Length 5 Inch, Application Seal Conduits in Vertical or Horizontal, to Minimize the Passage of Gases and Vapors and Prevent the Passage of Flames from One Portion of the Electrical System to Another Through the Conduit, Constructional Feature Explosionproof

Modified Industry Description

2 IN Hor/Vert Sealing Fitting (Aluminum)

Specifications

Application
To seal conduits in vertical and horizontal runs.
Brand Name
O-Z/Gedney
Color
Metallic
Connection
Female/Female, Taperd Threads NPT
Country of Origin
MX
Finish
l
Material
Copper-Free Aluminum
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Large opening for damming and filling
  • Prevent passage of gases, vapors or flames from one portion of conduit system to another, restrict any explosion to the sealed off enclosure, prevent pressure piling within conduit system
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in class I, division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in class I, division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in class I, division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
  • Required in class I, division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in class I, division 2 locations
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • UL listed for use with Kwiko™ a sealing compound
Standard
UL Listed: E-34997, UL Standard: 886, CSA Certified: 042843, CSA Standard: C22.2 No. 30
Sub_Brand
O-Z/Gedney
Type
Type EYA-A Aluminum Vertical/Horizontal Sealing Fittings
