TPI TPI UHP30P
TPI UHP30P
Kirby Risk #: 2286147
UPC: 686334799010, 68633479901, 00686334799010
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: TPI
Description
Industry Description

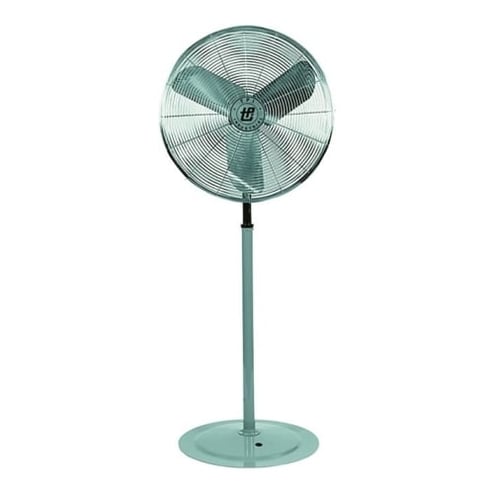

30 IN Industrial Unassembled High Performance Circulator, Size- 33.5IN, Flow Rate- 6200 (Low), 8200 (High) CFM, 1/3 HP, 3 AMP, Speed- 800 (Low), 1100 (High) RPM, 120 V, 2 Speeds, Pedestal Mounting
Modified Industry Description
30IN Unassembled High Performance
AD Description
TPI UHP30P 1-Phase High Performance Standard Unassembled Air Circulator, 30 in Blade, 8200 cfm High, 6200 cfm Low Flow Rate, 120 VAC, 3 A
Specifications
| Amperage Rating |
3
|
|---|---|
| Application |
Indoor-Industrial
|
| Blade_Material |
Aluminum
|
| Blade_Size |
30
|
| Brand Name |
TPI
|
| Country of Origin |
US
|
| Drive_Type |
Motor
|
| Flow_Rate |
8200 cfm High, 6200 cfm Low
|
| Horsepower |
1/3
|
| Housing_Material |
Steel
|
| Maximum_Depth |
14.5 IN
|
| Model |
UHP30P
|
| Motor_Type |
Split Capacitor
|
| Mounting |
Pedestal
|
| Number_Of_Speeds |
2
|
| Phase |
1
|
| Shaft_Diameter |
1/2 IN
|
| Size |
33.5 IN
|
| Special Features |
|
| Speed |
1100 rpm High, 800 rpm Low
|
| Standard |
cETLus Listed;OSHA
|
| Style |
Paddle Blade
|
| Sub_Brand |
TPI
|
| Type |
1-Phase High Performance Standard Unassembled
|
| Voltage Rating |
120
|
