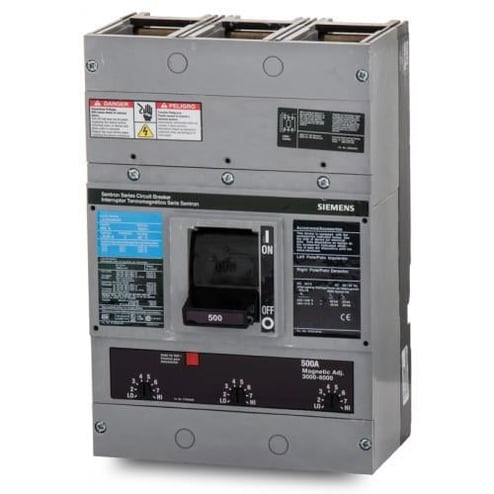

Siemens Siemens HLD63B500L
Siemens HLD63B500L
Kirby Risk #: 2275904
UPC: 78364300864, 783643008649, 00783643008649
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER LD FRAME WITH HIGH BREAKING CAPACITY. 500A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL(CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
Modified Industry Description
BREAKER LD 3P 500A 600V 35KA ASSY
AD Description
Siemens Sentron™ Speedfax™ HLD63B500L Type HLD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 500 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
500
|
| Application |
Standard 40C Breaker
|
| Class |
NJD
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Dimensions |
7 in L x 9 in W x 15 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
LD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
35
|
| Length1 |
15.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600 VAC/250 VDC
|
