Panduit Panduit FRVT4X4BL
Panduit FRVT4X4BL
Kirby Risk #: 2270118
UPC: 07498345096, 074983450961, 50074983450966, 00074983450961
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description
Attaches to 4x4 channel and/or fittings to create a 90° vertical drop from a horizontal run. Hinged door included. Accepts FTR4X4BL, FIDT4X4BL, S4X4BL6 or E4X4BL6 directly. Accepts optional snap-on cover FRHC4BL6 in conjunction with channel.
Modified Industry Description
Fitting, Vertical Tee With Hinged
AD Description

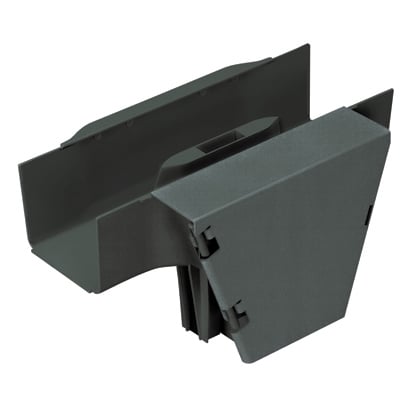

Panduit® FiberRunner® FRVT4X4BL Vertical Tee, 90 deg Bend, For Use With FiberRunner® 4 x 4 in Routing System Fitting, ABS, Black
Vendor Description
The Panduit® FiberRunner® ® cable routing system ensures maximum network reliability and reduced cost of ownership. Robust, highly engineered components with integral bend radius control surfaces can be configured to meet virtually any network application to provide optimum cable protection and assure network performance. Fast and easy to deploy, this scalable cable routing solution reduces installation cost and speeds implementation of new services.
Specifications
| Application |
Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment
|
|---|---|
| Brand Name |
Panduit
|
| Cable_Specification |
4 x 4 FiberRunner Fitting
|
| Color |
Black
|
| Country of Origin |
USA
|
| Material |
ABS
|
| Special Features |
|
| Standard |
RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
Vertical Tee
|
| Width_2 |
14.5800
|
| Width_3 |
22.0000
|
