Hubbell Hubbell HBL2323VBK
Hubbell HBL2323VBK
Kirby Risk #: 2268745
UPC: 78358504306, 783585043067, 00783585043067
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

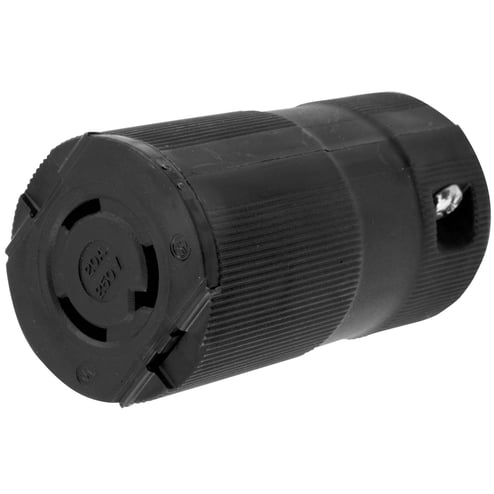

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Valise,Female Connector Body, 20A , 250V, 2-Pole 3-Wire Grounding, L6-20R,Screw Terminal, Black
Modified Industry Description
LKG VAL CONN, 20A 250V, L6-20R, BK
AD Description
Wiring Device-Kellems Twist-Lock® Valise® HBL2323VBK Female Grounding Standard Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#12AWG - #10AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L6-20R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Valise
|
| Voltage Rating |
250
|
