Hubbell Hubbell HBL5362GYWR
Hubbell HBL5362GYWR
Kirby Risk #: 2264193
UPC: 78358532057, 783585320571, 00783585320571
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

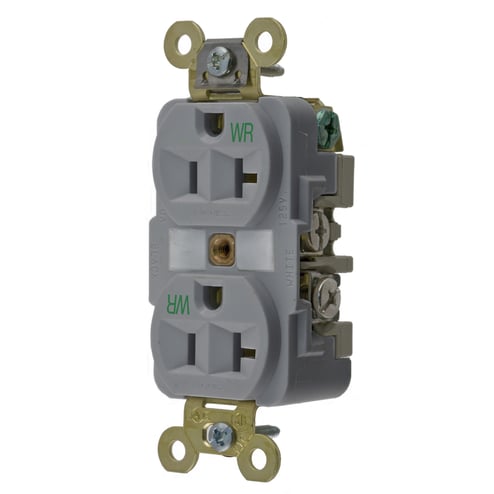

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Weather-Resistant Duplex, Industrial Grade, 20A 125V, 2-Pole 3-WireGrounding, 5-20R, Gray, Single Pack
Modified Industry Description
20A 125V RECPT GRAY
AD Description
Wiring Device-Kellems HBL5362GYWR Grounding Extra Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Extra Heavy Duty
|
| Color |
Gray
|
| Connection |
Back and Side Wired Screw Terminals
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Dimensions |
1.65 in W x 1.19 in D
|
| Environmental_Conditions |
Weather resistant
|
| Horsepower |
1
|
| Length1 |
4.1600
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA 5-20R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Extra Heavy Duty
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Extra Heavy Duty
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
