NSI NSi 5004M


Description

Industry Description

UtilityGrade TurnLock, On 1-3fc, Off/On Ratio 5Max,Delay Resp,1" Sensor,208-277V,3470-4620W Tungsten,2080-2770VA Ballast

Modified Industry Description

208-277V 2080-2770W, MOV, DELAY

AD Description

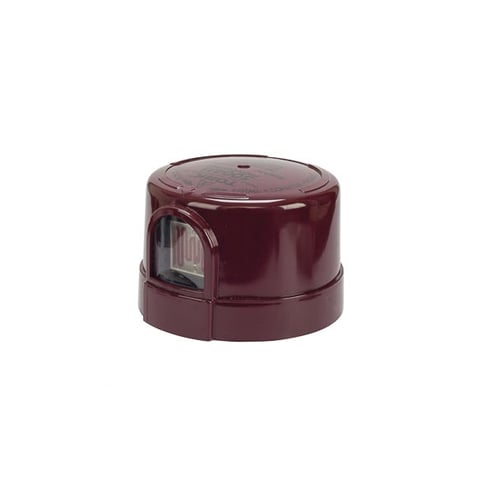

NSI Tork® 5004M 5000M Delayed Response Utility Grade Photocontrol, 208 to 277 VAC, 3470 to 4620 W Tungsten, 2080 to 2770 VA Ballast, Twist-Lock Mount, Lexan

Specifications

Amperage Rating
16.7
Application
Street-Highway Lighting
Brand Name
NSi
Color
Maroon
Country of Origin
CHN
Enclosure
Lexan Housing
Environmental_Conditions
-40 to 140 deg F Operating Temperature
Frequency_Rating
50/60
Material
Lexan
Mounting
Twist Lock
Mounting_Type
Twist Lock
Operating_Temperature
-40 to + 140 F
Sensitivity
1 to 3 FC (ON)/5 FC Max (OFF) to (ON) Ratio
Sensor
Cadmium Sulphide Cell
Size
H=2.187 - W=3.187
Special Features

  • 380 J MOV (metal oxide varistor) exceeds ANSI and NEMA requirements
  • Bi-metal provides positive snap action switching, reducing bounce and prolonging contact life
  • Cadmium sulphide, epoxy conformal coated 1/2 and 1 in Dia models
  • Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants
  • Delayed response prevents false switching due to light from vehicles or lighting operation
  • On fail mode
  • Photocell responds to the light spectrum near to that of a human eye
  • Polycarbonate housing and window, UV stabilized for permanent color
  • Provides high impact performance, flammability resistance and electrically safe operations
  • Solid brass prongs for maximum corrosion resistance and electrical conductivity
Standard
cULus
Sub_Brand
NSi
Supply_Voltage
208/277 VAC
Timing_Range
2
Type
Delayed Response Utility Grade
Voltage Rating
208 to 277
