NSI NSi PTS1
NSI PTS1
Kirby Risk #: 2261994
UPC: 66238103343, 662381033437, 00662381033437
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

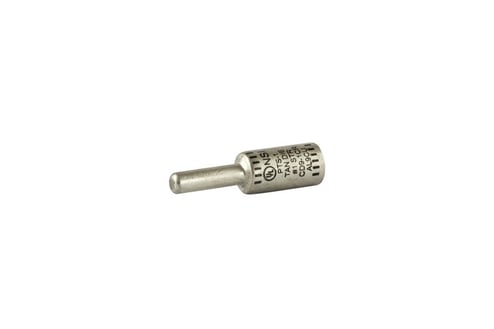

Solid Pin Terminal for Copper and Aluminum Conductors 1 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
Aluminum, Tin Plated Pin Terminal, 1 AWG Wire Size, 3 AWG SOLid Pin , TAN
AD Description
NSI PTS1 Dual Rated Solid Pin Terminal, 1 AWG Conductor, 1/4 in Dia x 0.83 in L Pin, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Tan
|
| Conductor Range |
# 1 AWG (STR)
|
| Connection |
# 3 Pin
|
| Conductor Size |
1 AWG
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol
|
| Material |
Aluminum
|
| Package_Quantity |
1
|
| Pin_Diameter |
1/4
|
| Size |
L=2.00 - OD=.598 - ID=.318 - Pin Dia=.250
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Dual Rated
|
| Voltage Rating |
600
|
