Appleton Appleton API3044
Appleton API3044
Kirby Risk #: 2261164
UPC: 78138116596, 781381165969, 0068785516596, 00781381165969
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfr
Modified Industry Description
30A PLUG INTERIOR ASSY 4P S1
AD Description

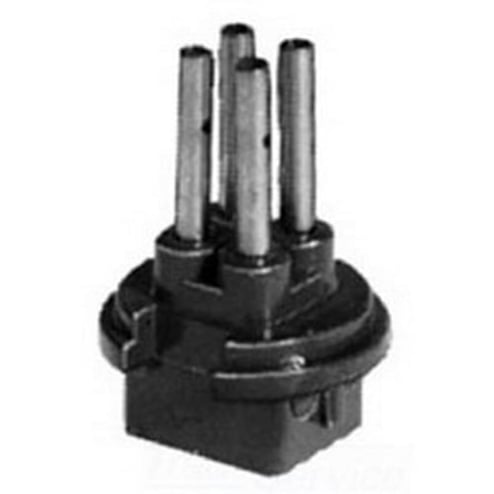

Appleton® Powertite® API3044 3-Phase Grounding Style 1 Pin and Sleeve Plug Interior, 600/250 VAC/VDC, 30 A, 4 Poles, 4 Wires
Vendor Description
Powertite® Series Plugs, Connectors and Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, "make first, break last" grounding.
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
For ARI-3044 Receptacle
|
| Brand Name |
Appleton
|
| Conductor Size |
10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)
|
| Country of Origin |
MX
|
| Environmental_Conditions |
Temperature Rating: -40 To 107 DEG C
|
| Finish |
Epoxy Powder Coated
|
| Material |
Copper Free Aluminum
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
|
| Sub_Brand |
Appleton
|
| Type |
3-Phase Grounding Style 1
|
| Voltage Rating |
600/250
|
