Hoffman Hoffman DU606030WP


Description

Industry Description

Ultrx WiFi, Type 4X, 608x595x321mm, Fiberglass

Modified Industry Description

24X24X8 WDW DR WOOD PANEL

AD Description

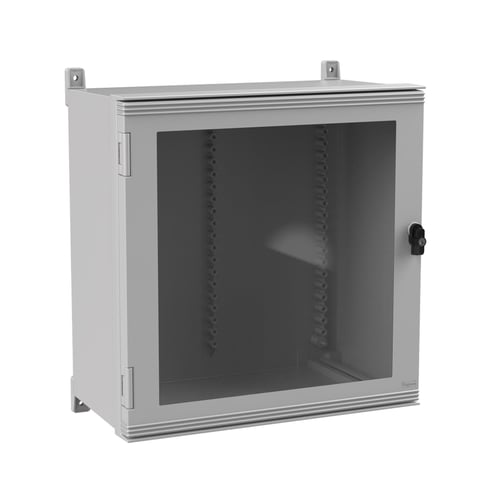

Hoffman ULTRX™ DU606030WP DWS12 Window Door WiFi Cabinet, 23.94 in L x 23.43 in W x 12.64 in D, NEMA 4/4X/12/13 NEMA Rating, Fiberglass

Vendor Description

Ideal for locations such as tunnels, floor vaults, marinas, outside walls or rooftops, the lightweight Ultrx fiberglass WiFi cabinet does not impede WiFi or WLAN signals and has optional rack angles that can be added to support 19-in. rack-mount equipment.

Specifications

Application
Ideal for locations such as tunnels, floor vaults, marinas, outside walls or rooftops, the lightweight ULTRXâ„¢ fiberglass WiFi cabinet does not impede WiFi or WLAN signals and has optional rack angles that can be added to support 19-in. rack-mount equipmen
Color
Light Gray
Country of Origin
US
Finish
Acrylic Enamel Coated
Length1
23.94
Material
Fiberglass
Mounting_Type
Wall
NEMA_Rating
NEMA 4/4X/12/13
Series
DWS12
Special Features

  • Door opens 180 deg
  • Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
  • Enclosure may be rotated 180 deg for left and right hinging
  • Fiberglass is easily punched, drilled, filed or sawed
  • Impact-resistant polycarbonate window is permanently bonded in place
  • Integral mounting rails provide infinite panel adjustment front to back
  • Key locking handle standard
  • Molded bosses on door provide additional mounting provisions
  • Molded-in DIN bosses
  • Molded-in drip shields are standard with each enclosure
  • Replaceable breakaway hinges
  • Seamless foam in place gasket assures a watertight and dust tight seal

Standard
UL 508A Listed, Type 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, 13, File No. E61997, Enclosure flammability rating per UL 508, Window flammability rating per UL 508, NEMA/EEMAC Type 4, 4X, 12, 13, CSA File No. LR42186:
Sub_Brand
Hoffman
Type
Window Door
