NSI NSi 500T
NSI 500T
Kirby Risk #: 2259798
UPC: 66238100109, 662381001092, 00662381001092
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
1 Port Aluminum Lug 500 MCM - 4 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .
Modified Industry Description
Aluminum Single Lug 500 MCM - 4 AWG
AD Description

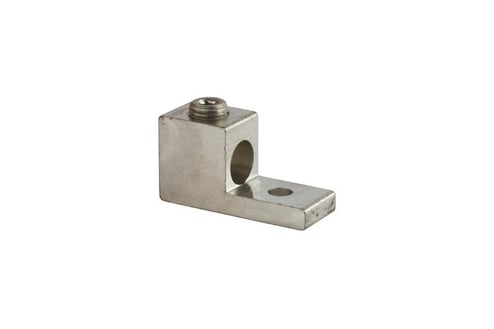

NSI 500T Dual Rated Lug, 4 AWG to 500 kcmil, 3/8 in Stud, 1 Bolt Holes, Aluminum
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
3/8
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
500 MCM-4 AWG
|
| Conductor Size |
4 AWG to 500 kcmil
|
| Country of Origin |
USA
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Number_of_Conductors_Ports_Main_Primary |
1
|
| Number_Of_Mounting_Holes |
1
|
| Number_Of_Ports |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Stud_Size |
3/8
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Aluminum Single Lug
|
| Voltage Rating |
600
|
