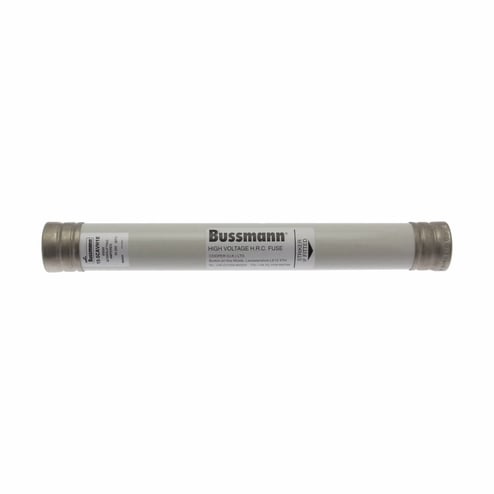

Bussmann Bussmann 15.5CAVH2E


Description

Industry Description

15.5KV 2E AMP XFMR FUSE

Modified Industry Description

FUSE 15.5KV 2A

AD Description

Edison 15.5CAVH2E CAVH Single Barrel Medium Voltage Fuse, 2 A, 15.5 kV, 80 kA, Class E

Specifications

Amperage Rating
2
Application
Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers
Class
E
Connection
Ferrule End X Ferrule End
Country of Origin
GB
Dimensions
12.8740 X 1.6260 X 1.6260
Interrupt_Rating
80
Length1
12.8740
Mounting
Bolt-On
Mounting_Type
Bolt-On
Series
CAVH
Size
1.63 In Diameter X 12.87 In Length
Special Features

  • 100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
  • Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
  • Current limiting fuses provide positive interruption even on low fault currents
  • E-rated general purpose fuses must have a current responsive element that will melt in 300 sec at an rms current within the range of 200% to 240% of the fuses nameplate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
  • Fitted with a striker pin for indication
  • Low amp, current limiting e-rated PT medium voltage fuses are general purpose fuses defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E-rating
  • Open fuse indicator speeds troubleshooting by providing a positive visual indication of fuse operation
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • Sized for retrofitting in existing hardware
  • Space saving size
  • Space saving size eases design considerations for new installations
  • The fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
Standard
Contact Manufacturer,Contact Manufacturer
Sub_Brand
Cooper Bussmann
Type
Single Barrel
Voltage Rating
15.5
