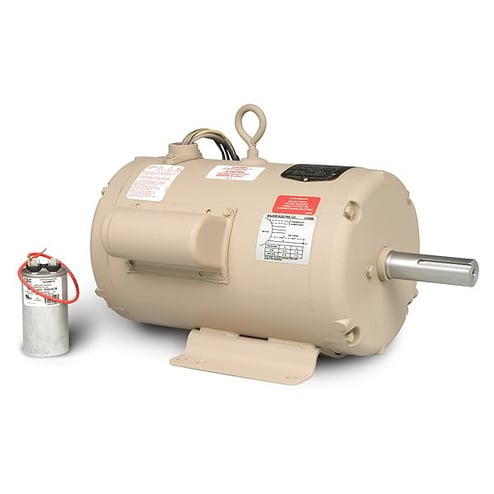

Baldor Baldor UCLE7510
Baldor UCLE7510
Kirby Risk #: 2256553
UPC: 78156822198, 781568221983, 00781568221983
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Industry Description
Baldor Electric; Farm Duty Motor; Speed Rating: 3450 RPM; Frequency Rating: 60 HZ; Torque Rating: 15.2 LB-FT Full Load, 41.5 LB-FT Break Down, 4 LB-FT Pull-Up, 4.5 LB-FT Locked-Roter At 230 V, 60 HZ, 10 HP; Power Factor: 95; Environmental Conditions: 40 D
Modified Industry Description
7.5-10 AIR OVERHP 3450RPM 1PH 60HZ 182TZ
Specifications
| Application |
General Purpose
|
|---|---|
| Base |
Rigid
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Enclosure |
TEAO
|
| Frame |
182TZ
|
| Frequency_Rating |
60
|
| Full_Load_Current |
38
|
| Horsepower |
10-7 1/2
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| Phase |
1
|
| Power_Factor |
0.95
|
| Rotation |
Reversible
|
| RPM |
3450
|
| Service_Factor |
1
|
| Special Features |
7.5-10 AIR OVERHP,3450RPM,1PH,60HZ,182TZ
|
| Speed_Rating |
3,450 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
230
|
