Siemens Siemens 3LD2064-1GP51-0US2
Siemens 3LD2064-1GP51-0US2
Kirby Risk #: 2253417
UPC: 78364397524, 783643975248, 4011209743441, 00783643975248
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

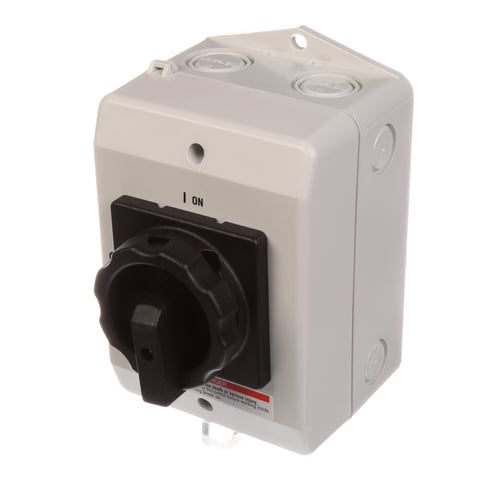

SENTRON, 3LD switch disconnector, main switch, 3- pole, Iu 16 A, Operational power / at AC-23 A at 400 V 7,5 kW, molded-plastic enc losure for inch threaded joint, 1NC, 1NO, rotary operating mechanism, black
Modified Industry Description
16A 3P ENCL T4X SW W/SCR CVR,BLK
AD Description
Sentron™ 3LD2064-1GP51-0US2 3LD Type OEM Main Switch Switch Disconnector, 690 VAC, 16 A, 1-1/2 hp at 240 VAC, 3 hp at 240 VAC, 7-1/2 hp at 480 VAC, 10 hp at 600 VAC, 1NO-1NC Contact, 3 Poles
Specifications
| Actuator |
Rotary
|
|---|---|
| Amperage Rating |
16A
|
| Application |
OEM Disconnect
|
| Connection |
N/A
|
| Country of Origin |
DE
|
| Enclosure |
True
|
| Environmental_Conditions |
Indoor
|
| Interrupt_Rating |
7.5kW
|
| Mounting |
Center Hole Mounted
|
| Number_Of_Poles |
3P
|
| Operating_Temperature |
-20F to 120F Ambient Temp
|
| Size |
118X100X164mm
|
| Special Features |
Black Handle
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Type |
3LD
|
| Voltage Rating |
690V
|
| Wattage |
N/A
|
