Hubbell Hubbell DR15WHIWRTR
Hubbell DR15WHIWRTR
Kirby Risk #: 2252511
UPC: 78358514479, 783585144795, 00783585144795
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Decorator/Commercial/Industrial Grade, 2-Pole3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack
Modified Industry Description
WTR/TAMP RES, DECO FACE, 15A 125V,
AD Description

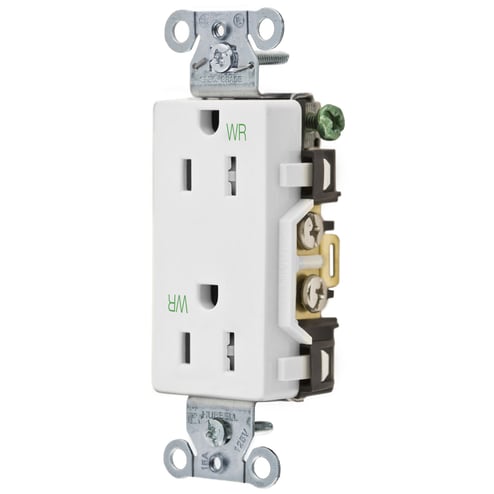

Wiring Device-Kellems StyleLine® DR15WHIWRTR Decorator Duplex Standard Tamper/Weather-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Commercial Specification Grade
|
| Color |
White
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Weather resistant
|
| Length1 |
3.2000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-15R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Commercial Specification Grade
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Decorator Duplex
|
| Voltage Rating |
125
|
| Wattage |
1,875
|
