Bussmann Bussmann 170M1565D

Name: Bussmann 170M1565D
Brand: Bussmann
SKU: 2252317
Price: 379.92 USD
Availability: InStock

Bussmann 170M1565D

Kirby Risk #: 2252317

UPC: 05171233477, 051712334778, 00051712334778

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

63AMP 690V HIGH SPEED FUSE

Modified Industry Description

63A 690V - HIGH SPEED FUSE

AD Description

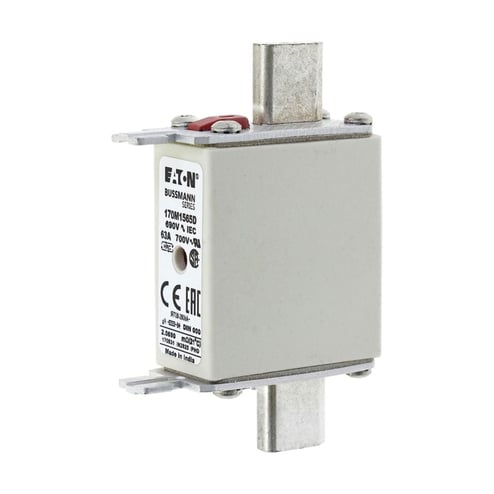

Bussmann 170M1565D Type T High Speed Fuse, 63 A, 690/700 VAC, 200 kA Interrupt, Class: gR, Square Body

Amperage Rating	63
Application	DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
Brand Name	Bussmann
Connection	DIN 43-620 Blade End X DIN 43-620 Blade End
Country of Origin	MUL
Element	Dual
Frequency_Rating	45 to 1000
Interrupt_Rating	200
Material	Ceramic
Package_Quantity	1
Size	79 mm Length X 21 mm Width X 48 mm Height
Special Features	Designated size 00 Excellent DC performance Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters Low arc voltage and low energy let through Low watts loss Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate Superior cycling capability
Standard	UL, CE, IEC 60269
Sub_Brand	Cooper Bussmann
Type	Type T
Voltage Rating	690/700
