Fluke FLUKE I310S


Description

Industry Description

Current probe is based on Hall Effect technology for use in measurement of both DC and AC current. May be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.

Modified Industry Description

AC/DC CURRENT CLAMP

AD Description

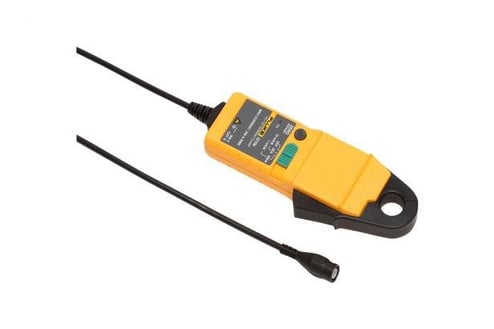

Fluke® I310S Current Probe, 30/300 A/300 VAC/VDC, 20 kHz

Vendor Description

The i310s current probe is based on Hall Effect technology for use in measurement of both DC and AC current. The i310s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.

Specifications

Application
The i310 current probe offered by Fluke can be used to measure both DC and AC current for accurate measurements
Country of Origin
UKN
Length1
2.4400
Special Features

  • (Small signal) DC to 20 kHz (- 0.5 dB) frequency
  • +/- 0.1% of reading/deg C temperature coefficient
  • +/- 1.5 % relative to center reading conductor position sensitivity
  • +/-50 mA at 30 A, +/-100 mA at 300 A resolution
  • -20 to 85 deg C storage temperature range (with battery removed)
  • < 2 degrees phase shift below 1 kHz
  • > 10 kOhm and <= 100 pF load impedance
  • 1 kHz bandwidth to meet accuracy specification
  • 10 mV/A at 30 A, 1 mV/A at 300 A output sensitivity
  • 15 to 85 % non-condensing operating humidity
  • 19 mm diameter maximum conductor
  • 2 m cable length
  • 30 A and 300 A AC rms or +/- 45 A and 450 A DC current range
  • 300 VAC rms or DC working voltage
  • 300 Vrms, Category III, pollution degree 2
  • 600A AC rms maximum inrush current
  • 9 VDC alkaline, MN1604/PP3, 30 hr low battery indicator power supply
  • Manual adjust via thumbwheel output zero
  • Safety BNC connector output connection
Sub_Brand
Fluke
Type
Probe
