Ideal Ideal 774040BK
Ideal 774040BK
Kirby Risk #: 2250716
UPC: 78325060691, 783250606917, 00783250606917, 30783250606918
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Ideal
Description
Industry Description
IDEAL, Rocker Switch, Full-Size, On-Off-On, Voltage Rating: 125, 227 VAC, Amperage Rating: 20, 15 AMP, Action: DPDT, Number Of Poles: 2, Connection: Spade, 6 Terminals, Size: 1.700 IN Length X 0.970 IN Weight X 190 IN Height, Mounting: 0.830 IN X 1.450 IN Hole, Operating Temperature: 32 To 185 DEG F, Hp Rating: 2 HP At 110 To 250 VAC, Panel Thickness: 0.125 IN
Modified Industry Description
SWTC,RCKR,DPDT,O-F-O,(100 PER)
AD Description

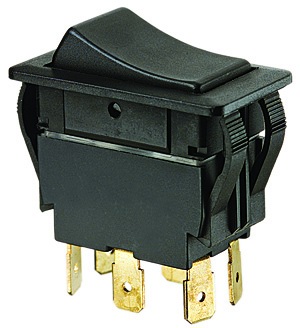

IDEAL® 774040BK Full-Size Rocker Switch, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC, DPDT Contact, 2 Poles
Specifications
| Action |
DPDT
|
|---|---|
| Amperage Rating |
20, 15
|
| Application |
For Commercial Appliances, Industrial Controls, Automotive And Marine Applications And Suitable For Low-Voltage DC Applications
|
| Brand Name |
Ideal
|
| Color |
Black
|
| Connection |
Spade, 6 Terminals
|
| Contact_Configuration |
DPDT
|
| Country of Origin |
CHN
|
| Environmental_Conditions |
32 to 185 deg F Operating Temperature
|
| Mounting |
Panel
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
32 To 185
|
| Size |
1.700 IN Length X 0.970 IN Weight X 190 IN Height
|
| Special Features |
|
| Standard |
CSA, RU Listed, RoHS
|
| Sub_Brand |
Ideal
|
| Type |
Full-Size, On-Off-On
|
| Voltage Rating |
125/227
|
