Panduit Panduit FROV454X4BL


Description

Industry Description

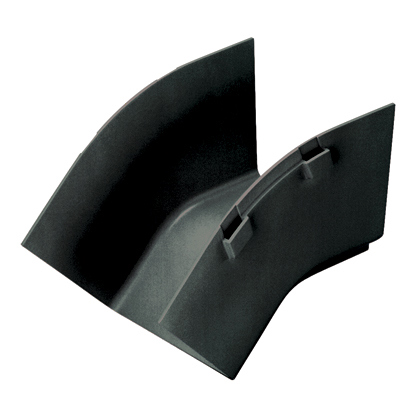

Attaches to 4x4 channel and/or fittings to create a 45° downward angle from a horizontal run. Used with inside vertical 45° angle fitting FRIV454X4BL to change level of a straight horizontal run. Accepts optional split cover FROV45SC4BL.

Modified Industry Description

FITTING, OUTSIDE VERTICAL 45O, 4 X

AD Description

Panduit® FiberRunner® FROV454X4BL Outside Vertical Angle Fitting, 7.72 in L, 45 deg Bend, ABS

Vendor Description

The 4 x 4 routing system shall be a system of channel, fittings and brackets designed to segregate, route and protect fiber optic and high performance copper cabling. Channel and fittings shall be assembled using pre-assembled couplers. A selection of spillout options shall be available that easily attach using the vertical tee. Fittings maintain a minimum 2 in bend radius to protect against signal loss due to excessive cable bends. Available system colors shall be yellow, orange and black. A full complement of brackets shall be available for attaching system components to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets and raised floor pedestals.

Specifications

Application
(1) Designed to segregate, route, and protect fiber optic and high performance copper cabling (2) It is suited for data center applications where cable is routed from distribution areas toequipment cabinets or racks (3) It is used in Telco CentralOffice
Color
Black
Country of Origin
USA
Length1
7.72
Material
ABS
Special Features

  • 4 x 4 FiberRunner® fitting
  • Accepts optional split cover FROV45SC4BL
  • Cable protection
  • Easy to maintain
  • Fastest installations
  • System strength, versatility
  • Two FRBC4X4BL couplers required for installation
  • Used to attaches to 4x4 channel and/or fitting to create a 45 deg downward angle from a horizontal run
  • Used with inside vertical 45 deg angle fitting FRIV454X4BL to change level of a straight horizontal run
Standard
UL Listed to 2024A Optical Fiber Cable Routing Assemblies, Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3, RoHS Compliant
Sub_Brand
Panduit
Type
Outside Vertical
