NSI NSi PT1/0
NSI PT1/0
Kirby Risk #: 2249736
UPC: 66238103304, 662381033048, 00662381033048
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

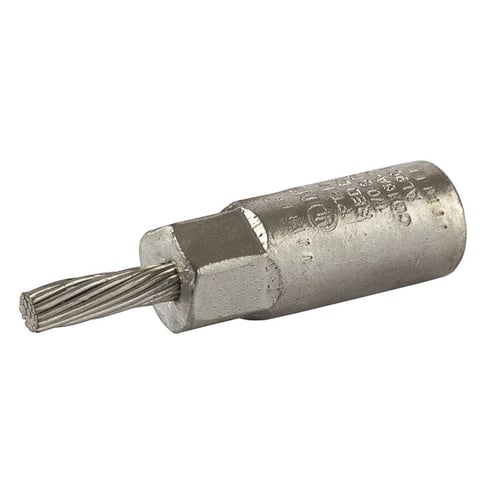

Stranded Bi-Metallic Pin Terminal 1/0 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Modified Industry Description
BI METALLIC PIN TERMINAL, 1/0 AWG
AD Description
NSI PT1/0 Bi-Metallic Pin Terminal With Plastisol Insulating Cover, 2 to 1/0 AWG Conductor, 0.287 in Dia x 1.259 in L Pin, Aluminum, Tan
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Tan
|
| Conductor Range |
1/0 AWG (STR)
|
| Connection |
# 2 Pin
|
| Country of Origin |
USA
|
| Finish |
Aluminum
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum - Tin Plated Copper Pin
|
| Package_Quantity |
1.000
|
| Size |
L=3.40 - OD=.900 - ID=.366 - Pin Dia=.287
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
Pin Terminals
|
| Type |
Bi-Metallic Pin
|
| Voltage Rating |
600
|
