Hoffman Hoffman AFM24248SS


Description

Industry Description

PharmaPro, Type 4X, 24.00x24.00x8.00, SS Type 304

Modified Industry Description

FLUSH MOUNT HINGED

AD Description

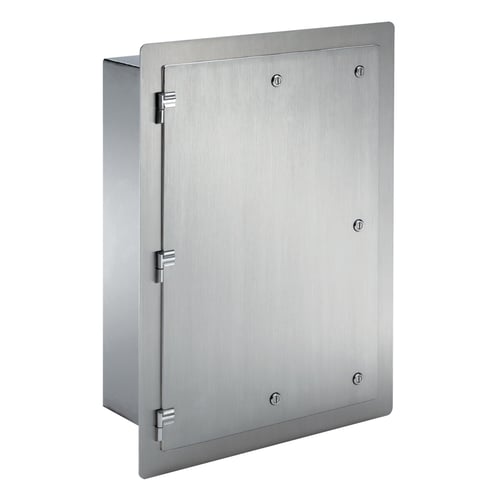

Hoffman Pharmapro™ AFM24248SS A20S Enclosure, 24 in L x 24 in W x 8 in D, NEMA 4/4X/12/13/IP66 NEMA Rating, 304 Stainless Steel

Vendor Description

PharmaPro Enclosures are specifically designed for the pharmaceutical industry with flush mounting and a low RA value finish that minimizes surface crevices for thorough wipe-downs and eliminates areas where contaminants can accumulate. The mounting system pulls the enclosure flush and tight to the wall and can be used on block or stud walls.

Specifications

Application
Controls and Drives; Corrosive Environments; Hygienic Environments
Color
Unpainted
Country of Origin
US
Finish
15-20 RA
Length1
24
Material
304 Stainless Steel
Mounting_Type
Flush
NEMA_Rating
NEMA 4X/IP66
Series
A20S
Size
24.00X24.00X8.00 in
Special Features

  • Enclosure body manufactured from 14 ga 304 stainless steel
  • Enclosure does not protrude into the manufacturing area
  • FDA approved silicone gasket
  • Low RA value of PHARMAPRO finish minimizes surface crevices, allowing for a thorough wipe-down
  • Mounting flange manufactured from 10 ga 316L stainless steel
  • Mounting system included
  • Screw cover and hinged door manufactured from 12 ga type 316L stainless steel
  • Seams continuously welded and ground smooth
  • Stainless steel quarter turn latches used with hinged door
  • Type 316L stainless steel lift-off hinges used with hinged door
  • Type 316L stainless steel slotted oval-head fasteners used with screw cover
Standard
UL 508A Listed, Type 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, 13, File No. E61997, NEMA/EEMAC Type 4, 4X, 12, 13, IEC 60529, IP66
Sub_Brand
PharmaPro
Type
Stainless Steel Wall Mounted Industrial Enclosures
