Panduit Panduit LAMB600-12-3Y

Name: Panduit LAMB600-12-3Y
Brand: Panduit
SKU: 2239286
Price: 38.33 USD
Availability: InStock

Panduit LAMB600-12-3Y

Kirby Risk #: 2239286

UPC: 07498359622, 074983596225, 30074983596226, 00074983596225

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

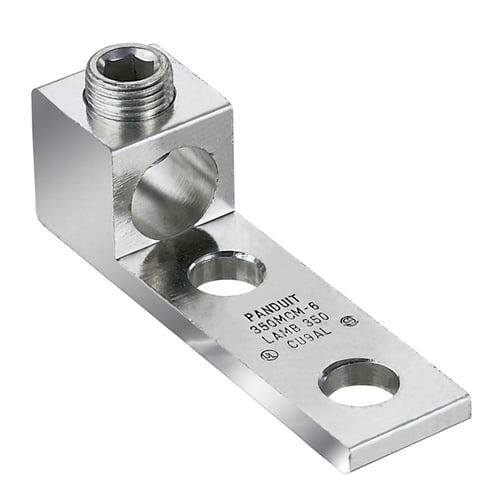

Two-hole, aluminum, single barrel lug, type LAMB, NEMA hole sizes and spacing, #4 AWG - 600 kcmil, 1/2 (12.7mm) stud hole.

Modified Industry Description

600 - 4 AWG 1/2 IN 2 HOLE AL MECH SINGLE LUG

AD Description

Panduit® LAMB600-12-3Y Single Barrel Mechanical Lug, 2 AWG to 600 kcmil Stranded Aluminum/Copper Conductor, 1/2 in Stud, 2 Bolt Holes, Aluminum

Application	Stranded Aluminum or Copper Code Conductor
Brand Name	Panduit
Conductor_Range_Main_Primary	#2 AWG Code - 600 kcmil Code
Conductor Size	2 AWG to 600 kcmil
Country of Origin	IND
Finish	Tin Plated
Material	Aluminum
Number_Of_Mounting_Holes	2
Number_Of_Ports	NA
Package_Quantity	1
Special Features	Compact design saves space Inspection window to visually assure full conductor insertion Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector Tin plated to inhibit corrosion Wide wire range taking capability minimizes inventory requirements
Standard	UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
Stud_Size	1/2
Sub_Brand	Panduit
Temperature_Rating	90
Type	Single Barrel
Voltage Rating	600
