Hoffman Hoffman Q1388PCEMC


Description

Industry Description

QLine E, EMC, Type 4X, 125x75x74mm, Polycarbonate

Modified Industry Description

J BOX TYPE 4X, SCREW CVR, EMC

AD Description

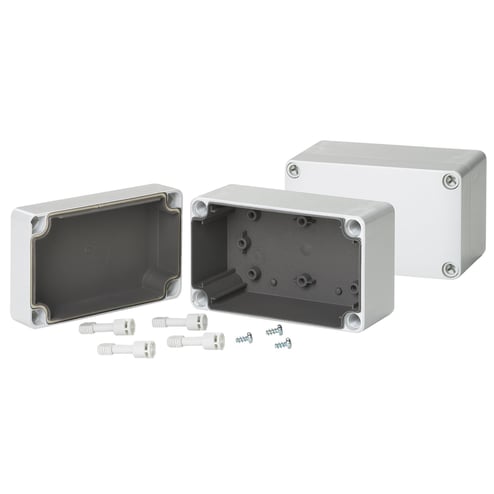

Hoffman QLINE™ Q1388PCEMC Q41EM Type EMC Junction Box, 125 mm L x 75 mm W x 74 mm D, Screw/Solid Cover, NEMA 4X/IP66 NEMA Rating, Polycarbonate

Vendor Description

Medium-size QLine E polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.

Specifications

Application
Medium-size QLINE™ E polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.
Color
Light Gray
Country of Origin
EE
Finish
Smooth Matte
Length1
125
Material
Polycarbonate
Mounting_Type
Wall
NEMA_Rating
NEMA 4X/IP66
Series
Q41EM
Size
125 x 75 mm
Special Features

  • Body is impact-resistant polycarbonate
  • Cross point flush cover screws are strong, durable polyamide
  • EMC conductive coating in base and cover
  • Gasket of silver/silicone
  • Molded internal pads for mounting optional panels, rails and other components
  • Mounting holes molded directly under cover screws
  • Mounting tracks along body side walls for PC card installation
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Screws provided for mounting optional panel
Standard
UL 508A Listed, Type 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94: Type 4, 4X, 12, 13, File No. E61997, Enclosure flammability evaluated per UL 508A, NEMA/EEMAC Type 4, 4X, 12, 13, IEC 60529, IP66
Sub_Brand
Hoffman
Type
Type EMC
