Hubbell Hubbell CR20GRYTR


Description

Industry Description

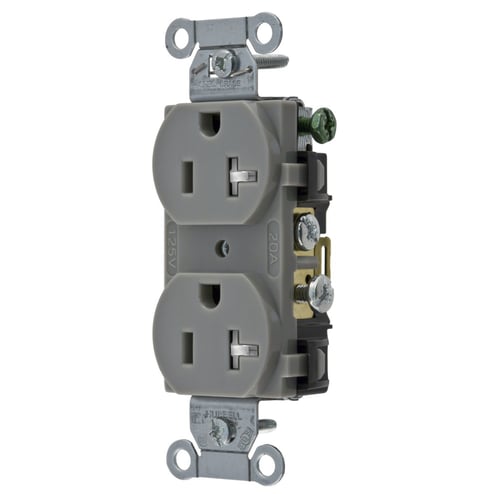

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A125V, 5-20R, Gray, Single Pack

Modified Industry Description

TAMP RES, COM GRD, 20A 125V, 5-20R,

AD Description

Wiring Device-Kellems CR20GRYTR Duplex Grounding Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray

Specifications

Amperage Rating
20
Application
Commercial Specification Grade
Brand Name
Hubbell
Color
Gray
Connection
Back and Side Wired
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Configuration
5-20R
NEMA_Rating
5-20R
Number_Of_Poles
2-Pole
Number_Of_Wires
3-Wire Grounding
Phase
Single
Size
Standard Sized Product
Special Features

  • 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • Nylon face and base, 0.03 in brass power contacts, 0.04 in (1) galvanized steel, plated steel terminal screws, stainless steel automatic self-grounding staple, galvanized steel mounting screws
  • Smooth face receptacle
  • Tamper resistant shutter complies with national electrical code requirements
  • Triple wipe contacts
  • Withstands 2000 VAC minimum dielectric voltage

Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Duplex
Voltage Rating
125
Wattage
2000Watts
