NSI NSi L2038
NSI L2038
Kirby Risk #: 2236514
UPC: 66238103408, 662381034083, 00662381034083
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

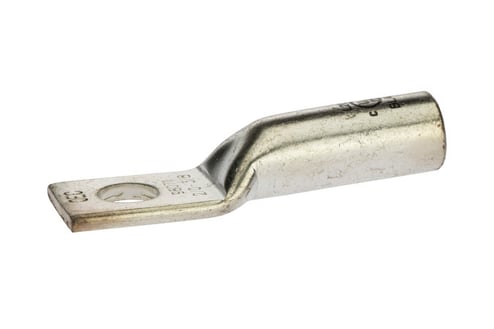

1 Hole Long Barrel Copper Compression Lug 2/0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Modified Industry Description
2/0 AWG CU COMPRESSION LUG, 3/8IN
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
2/0 AWG (STR)
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Size |
2/0
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
3/8 Mounting Hole
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Size |
L=2.67 - W=.815 - OD=.563 - ID=.441
|
| Special Features |
2/0 AWG (STR) - 3/8 Mounting Hole
|
| Standard |
UL486
|
| Stud_Size |
3/8
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole
|
| Voltage Rating |
600 V
|
