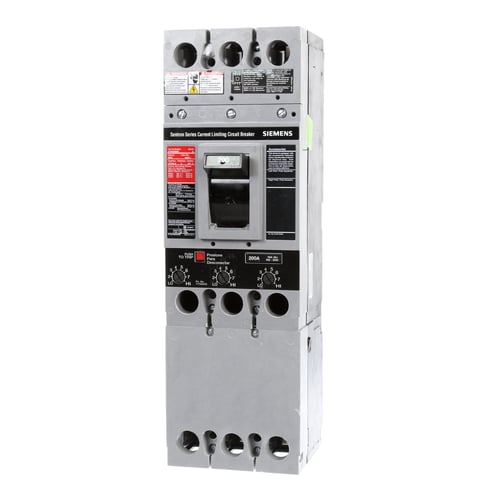

Siemens Siemens FD63B225PAESA
Siemens FD63B225PAESA
Kirby Risk #: 2236265
UPC: 78364337702, 783643377028, 00783643377028
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 225A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). ACCESSORIES INCLUDED (S16FD60) / (A01FD62). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
AD Description
Sentron™ Speedfax™ FD63B225PAESA Molded Case Circuit Breaker, 600 VAC/500 VDC, 225 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
A01FD62 and 12Vdc Shunt Trip Accessories
|
|---|---|
| Amperage Rating |
225
|
| Application |
Standard 40C Breaker
|
| Connection |
Load side lugs only
|
| Country of Origin |
MX
|
| Dimensions |
7 in L x 6 in W x 11 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
FD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
22
|
| Length1 |
11.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
FD6
|
| Voltage Rating |
600 VAC/500 VDC
|
