Hubbell Hubbell GF15ILA

Hubbell GF15ILA

Kirby Risk #: 2232647

UPC: 88377837901, 88377839701, 883778379017, 00883778379017, 30883778397012

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Modified Industry Description

15A 125V COMM LED GFCI, IV

AD Description

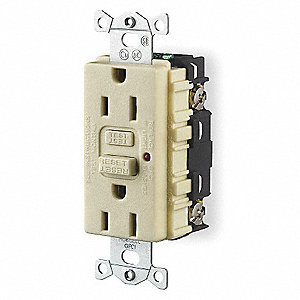

Hubbell® Circuit Guard® GF15ILA Commercial Heavy Duty GFCI Receptacle With LED Light, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Amperage Rating	15
Application	Heavy Duty Commercial Grade
Brand Name	Hubbell
Color	Light Almond
Connection	Back and Side Wired Screw Terminals
Conductor Size	#14 AWG to #12 AWG
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Mounting	Screw Mount
NEMA_Rating	5-15R
Number_Of_Poles	2
Number_Of_Wires	3
Phase	1
Size	Standard Sized Product
Special Features	0.025 sec trip time 0.95 max humidity 10000 A maximum interrupting capacity 14 to 10 AWG stranded or solid copper conductors only terminal accommodations 4 to 6 mA trip level Decorator duplex, standard size receptacle Features automatic grounding clip and captive mounting screws, 20 A feed through Flashing RED indicates device has lost capability to provide protection GFCI receptacles should not be used in critical care patient areas or for electrical life support equipment Internal backwire wiring style Open circuit condition eliminates false assumption of protection at face When test button is actuated, both the electronic components and mechanical trip mechanism are functionally tested
Standard	NEMA WD1 and WD5, UL 498 and UL 943
Sub_Brand	Hubbell Wiring Device-Kellems
Type	Decorator Duplex
Voltage Rating	125
Wattage	1,875
