Hubbell Hubbell HBL1221ILR
Hubbell HBL1221ILR
Kirby Risk #: 2226907
UPC: 78358543453, 783585434537, 00783585434537, 30783585435436
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

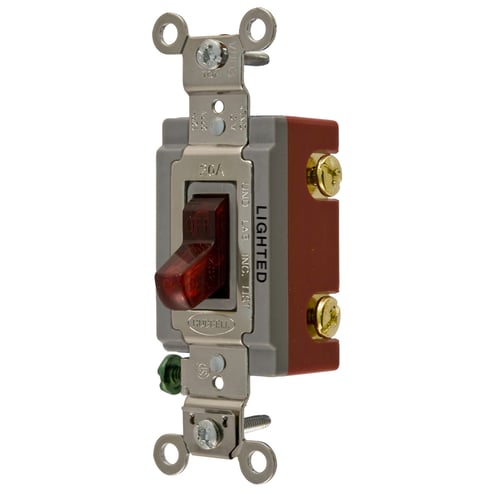

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Illuminated Industrial Grade, Toggle Switches, General Purpose AC,Single Pole, 20A 120/277V AC, Back and Side Wired, Red
Modified Industry Description
SP TOG, IND GRD, 20A 120/277V, IL,
AD Description
Wiring Device-Kellems HBL® HBL1221ILR Extra Heavy Duty General Purpose Illuminated Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W, 2-Position
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20
|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Back and Side Wired
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
PR
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
