Burndy Burndy YA1CL2TC14


Description

Industry Description

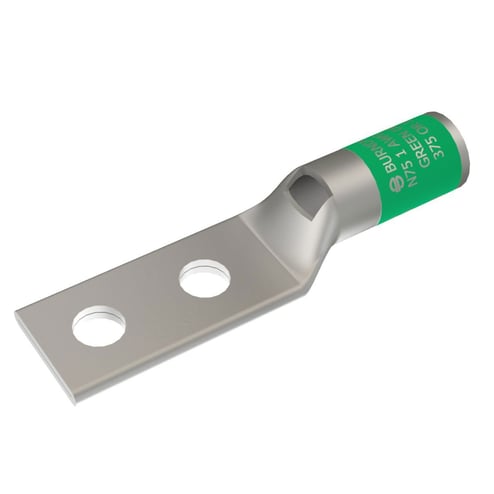

Copper Compression Lug, 2 Hole w/ Inspection Window, 1 AWG, 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin Plated.

AD Description

BURNDY® HYLUG YA1CL2TC14 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11/375, 1/4 in Stud, Copper

Vendor Description

BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.

Specifications

Application
For Code Conductor
Country of Origin
US
Length1
2.5100
Material
Copper
Special Features

  • Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W1CVT, W1CRT-1, X1CRT-1 die, (1), hydraulic: BCT500HS, Y500CTHS tool, W1CVT, W1CRT-1, X1CRT-1 die, (1), Y35, Y39, Y750, PAT750 tool, U1CRT-1, U4CABT die, (1), Y46 tool, U1CRT-1, U4CABT die with PUADP-1 adapter, (1), conductor type: commercial stranded copper, dieless tools (number of crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), Y1MRTC tool, (2)
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
Standard Barrel, Tin Plated
Voltage Rating
35,000
