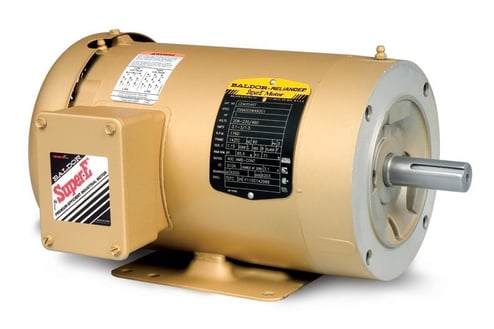

Baldor Baldor CEM3611T
Baldor CEM3611T
Kirby Risk #: 2223830
UPC: 78156843150, 781568431504, 00781568431504
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Industry Description
Features: Suitable for mounting in any position. Ball bearings, heavy-gauge steel and cast-iron frames, and gasketed conduit boxes. Class F insulation, 1.15 service factor, low-loss electrical grade lamination steel. EM Super-E® motors have NEMA Premium®
Modified Industry Description
3HP, 1760RPM, 182TC, 3631M, TEFC, F1, 3 PHASE MOTOR
Specifications
| Application |
General Purpose
|
|---|---|
| Base |
Rigid
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Efficiency |
89.5
|
| Enclosure |
TEFC
|
| Frame |
182TC
|
| Frequency_Rating |
60 Hz
|
| Full_Load_Current |
4.2 A; 8.4 A; 9.0 A
|
| Horsepower |
3
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| Phase |
3
|
| Power_Factor |
75
|
| Rotation |
Reversible
|
| RPM |
1760
|
| Service_Factor |
1.15
|
| Special Features |
3HP,1760RPM,3PH,60HZ,182TC,3631M,TEFC,F1
|
| Speed_Rating |
1,760 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
208-230/460
|
