O-Z/Gedney O-Z/Gedney C8X150M


Description

Industry Description

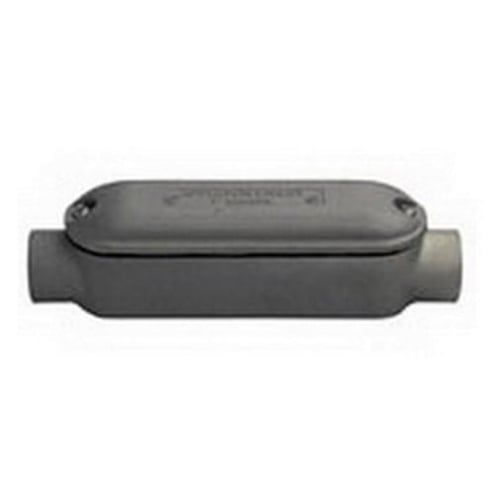

OZ-Gedney Type C Mogul Conduit Body, 1-1/2 IN Hub, Length: 13.94 IN, 3.13 IN Width, 3-3/4 IN Height, Malleable Iron, Finish: Triple coat: Zinc Electroplated, Dichromate, Epoxy Powder Coat, Connection: Tapered FNPT, 93 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2, Per NEC section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC

Modified Industry Description

1-1/2 IN MOGUL IRON COND BDY C

Specifications

Application
For Rigid Conduit And IMC
Connection
Tapered FNPT
Country of Origin
MX
Dimensions
13.94 in L x 3.75 in H
Enclosure
NEMA FB-1/FB-2.10
Finish
Triple Coated
Length1
15.0000
Material
Malleable Iron
Mounting_Type
Surface
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Roomy interiors more wiring space
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Smooth integral hub bushings to protect conductor insulation when pulling
  • Smooth, rounded integral bushing in hubs protects conductor insulation
Standard
Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2, Per NEC section 501-4(B), NEMA : FB-1, FB-2.10
Type
Type C8X Mogul
