Thomas & Betts Thomas & Betts 329


Description

Industry Description

Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 2 Inch, Knockout Size 2 Inch, Cable Range 2.312 to 2.500 Inch, Malleable Iron with Zinc Plating

Modified Industry Description

2 IN 90 DEGREE TITE-BITE CONNECTOR MALLEABLE

AD Description

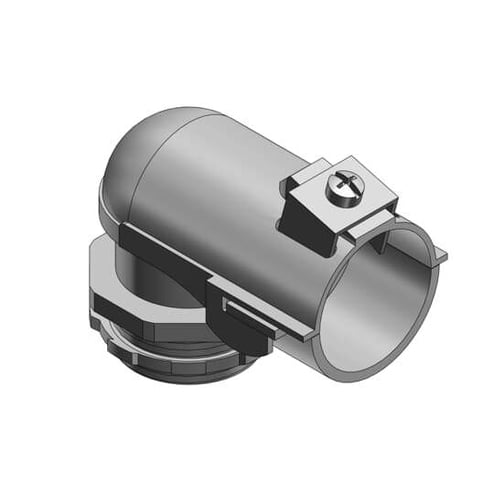

T&B® Tite-Bite® 329 Cable Angle Connector With Non-Insulated Throat, 2 in Trade, 2 in Knockout, 2.312 to 2.5 in Cable Openings, Malleable Iron, Electro-Plated Zinc

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
For Use with Armored Cable and Flexible Metal Conduit
Brand Name
Thomas & Betts
Color
Metallic
Conductor Range
2.312 - 2.500 Inch
Connection
90 Degree
Country of Origin
US
Finish
Electro Plated Zinc
Material
Malleable Iron
Number Of Conductors
1
Special Features

  • 1-screw connection
  • Single cable opening
  • The angle clip gives secure mechanical grip that tightens under tension or vibration
  • Throat is long enough to install in cast housing knockouts
  • To connect and effectively bond armored cable or flexible metal conduit to a box or an enclosure
Standard
UL E23018, CSA 2884
Sub_Brand
Thomas & Betts
Trade_Size
2
Type
Armored Cable/Flexible Metal Conduit Fittings
Width_2
6.8000
