O-Z/Gedney O-Z/Gedney LL300


Description

Industry Description

OZ-Gedney Spec 5 Type LL Conduit Body, 3 IN Hub, Length: 13-3/4 IN, 4-3/4 IN Height, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, Connection: Tapered FNPT, 3 (4/0 AWG) Conductors, 173 CU-IN Volume, Third Party Certification: UL F

Modified Industry Description

3 IN LL IRON COND BDY

AD Description

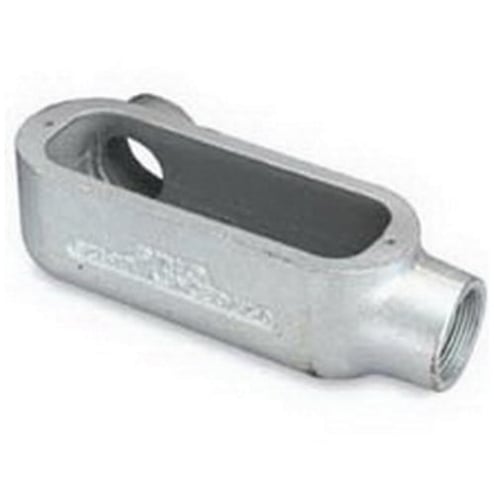

O-Z/Gedney Spec 5™ LL300 Type LL Conduit Outlet Body, 3 in Hub, 173 cu-in, Malleable Iron, Zinc Electroplated/Aluminum Enamel

Vendor Description

O-Z/Gedney Spec 5™ Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Specifications

Application
For Rigid Conduit And IMC
Connection
Tapered FNPT
Country of Origin
MX
Dimensions
13-3/4 in L x 4-3/4 in H
Enclosure
NEMA FB-1
Finish
Zinc Electroplated/Aluminum Enamel
Length1
17.0000
Material
Malleable Iron
Mounting_Type
Surface
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
  • Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Internal volume and maximum wire capacity clearly marked on castings
  • Malleable iron suitable for use in concrete
  • Raintight when an Appleton™ cover and gasket are installed
  • Raintight when used with gasketed covers
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Tapered threaded hubs (NPT)
Standard
Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10
Sub_Brand
Spec 5
Type
Type LL
